Product Overview

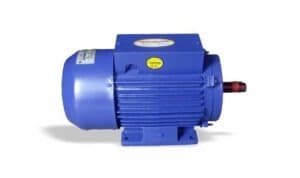

This Sun Star TEFC motor is a three-phase squirrel-cage induction motor with IP55 protection rating — completely dust-tight and protected against water jets from any direction. The totally enclosed design prevents contaminants from reaching the stator winding and rotor, while the external fan mounted on the non-drive end shaft provides forced-air cooling over the finned motor body.
Key Features
Technical Specifications
| Power Range | 0.5 HP to 20 HP |
| Voltage | 415V |
| Frequency | 50Hz |
| Speed | 2880 / 1440 / 960 / 750 RPM |
| Enclosure | TEFC (Totally Enclosed Fan Cooled) |
| Mounting | Foot (B3) |
Common Applications
Industries Served
HVAC & Building Services
AHU fans, exhaust fans, chilled water pumps, and ventilation systems in commercial and industrial buildings.
Manufacturing
Conveyor drives, compressors, and process pumps in general manufacturing facilities.
Water Treatment
Water supply pumps, booster pumps, and aeration blowers in water treatment and distribution systems.
Key Benefits
- TEFC enclosure protects internal components from dust, moisture, and contamination — extending motor life in dirty environments
- Precision-balanced rotor delivers low vibration operation, extending bearing life and reducing noise
- Wide voltage range tolerance handles Indian grid voltage fluctuations without derating
Why Choose Our Motors
- Precision dynamic balancing to ISO 1940 G2.5 delivers industry-leading low vibration
- Sealed bearings with re-greasing provision extend service intervals
- Wide voltage tolerance designed specifically for Indian power grid conditions
Manufacturing & Quality
Manufacturing Process
Standard TEFC motor manufacturing follows our established 12-step process with additional emphasis on dynamic balancing. The rotor is balanced in two planes to ISO 1940 G2.5 grade using our computerised balancing machine.
Quality Standards
- Dynamic balancing to ISO 1940 G2.5 grade
- Vibration measurement at rated speed
- 100% insulation resistance and HV testing
- No-load current and power factor verification
Certifications
Selection Guide
For fan and pump applications where vibration and noise are priorities, this TEFC motor range is the optimal choice.
Comparison With Similar Motors
| Feature | Sun Star Motors™ | Typical Market Motor |
|---|---|---|
| Balancing | Precision ISO 1940 G2.5 grade | Standard G6.3 grade |
| Vibration | Low vibration — optimised for bearing life | Standard vibration levels |
| Voltage Range | Designed for Indian grid fluctuations | Standard ±5% tolerance |
| Bearings | Sealed with re-greasing provision | Standard open bearings |
Installation Guidelines
- Mount on a flat, rigid baseplate using all foot bolts — tighten to recommended torque values
- Align motor shaft to driven equipment within 0.05mm using dial indicator or laser alignment
- Ensure adequate clearance around the fan cover (minimum 50mm) for proper cooling airflow
Maintenance Tips
- Grease bearings every 3,000–5,000 operating hours with lithium EP2 grease
- Clean fan cover and cooling fins quarterly to maintain cooling efficiency
- Check terminal connections for tightness every 6 months
Troubleshooting Guide
| Issue | Possible Cause | Solution |
|---|---|---|
| Motor runs hot at rated load | Blocked ventilation, dusty cooling fins, or ambient temperature above rated | Clean fan cover and cooling fins. Verify ambient temperature. If above 50°C, motor must be derated. |
| Increased vibration over time | Bearing wear, coupling misalignment, or foundation bolt loosening | Check and re-tighten foundation bolts. Re-align coupling. Replace bearings if vibration persists. |
Warranty Information
All Sun Star Motors™ TEFC induction motors carry a 12-month warranty from the date of dispatch, covering manufacturing defects under normal operating conditions.
