Flange Mounted Motor
Seamless integration into pumping and mixing systems.
Flange Mounted Motor
WhatsApp for 15-min engineer call
Warranty
1 Year Standard
Service
Covered by Warranty
Certified
ISO 9001:2015
Experience
24 Years
Product Overview

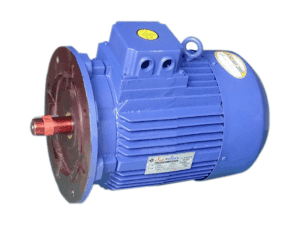

The Sun Star B5 flange mounted motor features a large circular flange on the drive end with through-holes (non-threaded) and a precision spigot for centering. The driven equipment's input flange is bolted to the motor flange using through-bolts and nuts.
Key Features
Technical Specifications
| Power Range | 0.5 HP to 20 HP |
| Mounting | Flange (B5) |
| Speed | 2880 / 1440 / 960 / 750 RPM |
| Voltage | 230/415V |
| Frame | IEC Standard |
| Cooling | TEFC |
Common Applications
Industries Served
Water & Pumping
Centrifugal pumps, booster pump sets, and water distribution systems.
Chemical Processing
Agitator drives, mixer motors, and reactor vessel stirrer drives in chemical and pharmaceutical plants.
Hydraulic Systems
Hydraulic power pack pump drives for press machines, injection moulding, and metal forming equipment.
Key Benefits
- Direct flange coupling eliminates coupling misalignment — the #1 cause of motor-pump bearing failure
- B5 large flange provides maximum structural rigidity and vibration resistance
- Vertical shaft capability enables direct pump mounting without additional support structures
Why Choose Our Motors
- B5 flange CNC-machined to IEC tolerance for guaranteed compatibility with standard pump and gearbox flanges
- Spigot concentricity verified to ≤ 0.03mm for precision alignment
- Reinforced bearing arrangement for vertical shaft-down applications
Manufacturing & Quality
Manufacturing Process
B5 flange motor production adds CNC machining of the large flange face and spigot to our standard motor manufacturing process. Flange flatness is verified to within 0.05mm across the full face.
Quality Standards
- Flange flatness verified to ≤ 0.05mm
- Spigot concentricity verified to ≤ 0.03mm TIR
- Through-hole positions verified to IEC bolt circle dimensions
- Standard motor testing (IR, HV, no-load, vibration)
Certifications
Selection Guide
For pump applications, the B5 flange motor is almost always the best choice because it eliminates the coupling — the most common failure point in motor-pump systems. Verify the pump's input flange IEC size matches the motor's B5 flange.
Comparison With Similar Motors
| Feature | Sun Star Motors™ | Typical Market Motor |
|---|---|---|
| Flange Type | B5 large flange with through-holes | Same for B5 standard |
| Flange Flatness | Verified to ≤ 0.05mm | Not specifically verified |
| Vertical Duty | Modified bearing arrangement for vertical shaft | Standard bearings (not suitable for vertical) |
| Dual Voltage | 230/415V available | 415V only in many cases |
Installation Guidelines
- Verify the motor's B5 flange dimensions match the pump or equipment input flange before installation
- For vertical shaft-down installations, verify that the motor's bearing arrangement includes thrust capacity
Maintenance Tips
- Check flange bolt torque every 6 months — especially critical for vertical installations where gravity loads the flange
- For vertical shaft applications, grease bearings more frequently (every 2,000 hours) due to axial loading
- Follow standard motor maintenance schedule for insulation testing and cooling system maintenance
Troubleshooting Guide
| Issue | Possible Cause | Solution |
|---|---|---|
| Motor shaft does not align with pump shaft despite flange being bolted | Spigot register worn, flange face not flat, or wrong flange standard | Inspect spigot for wear. Check flange face flatness with straightedge. Verify that both motor and pump use the same IEC flange standard. |
| Bearing failure on vertical shaft-down installation | Standard bearings not rated for axial thrust, or excessive pump thrust loads | Verify that the motor was ordered with vertical duty bearing arrangement. If standard bearings were installed, replace with angular contact or thrust bearings. |
Warranty Information
All Sun Star Motors™ flange mounted motors carry a 12-month warranty from the date of dispatch, covering manufacturing defects including flange dimensions and bearing arrangement under normal operating conditions.
